Retractable Open Style Automatic Access Control Full Height Sliding Glass Turnstile

Application: Apartment, office, membership club

Type: Full height sliding turnstile

Communication: RS485 TCP/IP

Working environment: Indoor, outdoor with shed

Technicial Datasheet:

Size	1400mm320mm1000mm
Material	304 Stainless steel, 1.5mm thickness
Arm material	Acrylic 10mm thickness
Motor type	DC motor ( 24V )
Lane width	≤600mm
Net weight	80kg/unit
MCBF	>5.000.000 times
Signal	Dry contact signal or 12V level signal
IR sensor	6 pairs
Access speed	35 people/min
Open/Close speed	0.2 sec
Automatic reset time after failure	5 sec (adjustable)
Working environment	Indoor / Outdoor (Under shade)
Temperature	-25℃ --+70℃
Relative humidity	<90% no condensation

Function:

1) Compact design,Efficient and secure access control system with reasonable price.

2) Auto reset function,If no passing during identified card-reading time, the system will reset automatically,

Passengers are prohibited to pass until card is swiped.

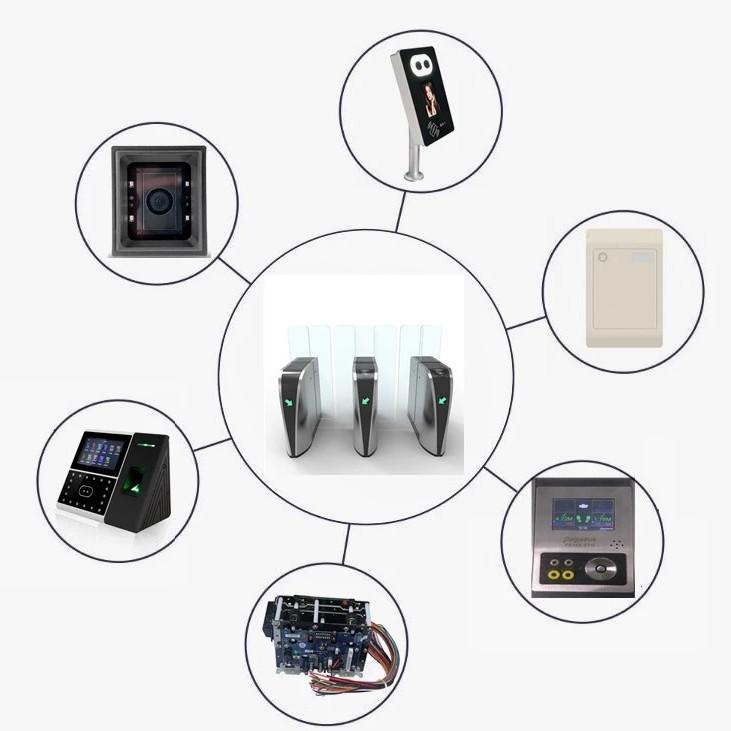

3) Both RFID card reader and QR code scanner could be integrated for better user experiences.

4) With direction indicator,it can guide passenger the correct entry and exit direction.

5) Automatically locking to prevent passenger passing without the identified device.

6) It adopts DC motor to drive stably and has low failure rate.

7) Bi-directional passing or single way passing.

8) Infrared photocells for safety acces.

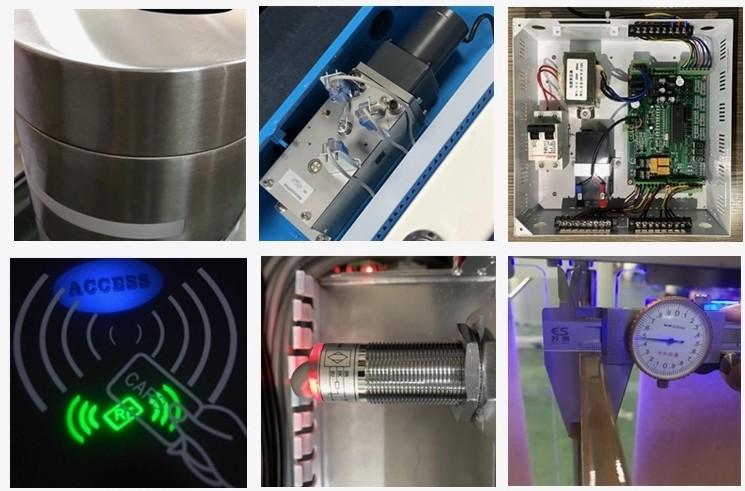

Details Photo:

Application Place:
