Full Automatic 3 Arm Access Control Tripod Turnstile Barrier Gate for Security Check

Description

Description:

The Portable Tripod Turnstile is a type of turnstile that is designed to be portable and easy to install in different locations. It is commonly used for crowd control, access control, and security purposes. The tripod design allows for quick and easy setup, as well as mobility between different sites.

Portable tripod turnstiles are typically made of durable materials such as stainless steel, which ensures longevity and resistance to wear and tear. They often have a compact and lightweight design, allowing for convenient transportation and ease of installation. They can be set up temporarily for events, exhibitions, or construction sites, or used as a semi-permanent solution in areas that require temporary access control measures.

These turnstiles usually feature three rotating arms or bars that can be rotated in one or both directions to allow controlled entry or exit. Some may also include additional features such as card readers, barcode scanners, or biometric scanners for enhanced security and access control.

The Portable Tripod Turnstile is a versatile solution that can be used in various applications, including ticketed events, stadiums, construction sites, trade shows, and temporary access control points. It helps manage the flow of people, deter unauthorized entry, and provide a reliable access control system in temporary or frequently changing locations.

Specifications:

• Model No.: EF-301NP
• Type: Portable Turnstile
• Framework Material: 304 brushed stainless steel+ High end black tempered film glass
• Arm material: 304 stainless steel (rubber protector is optional)

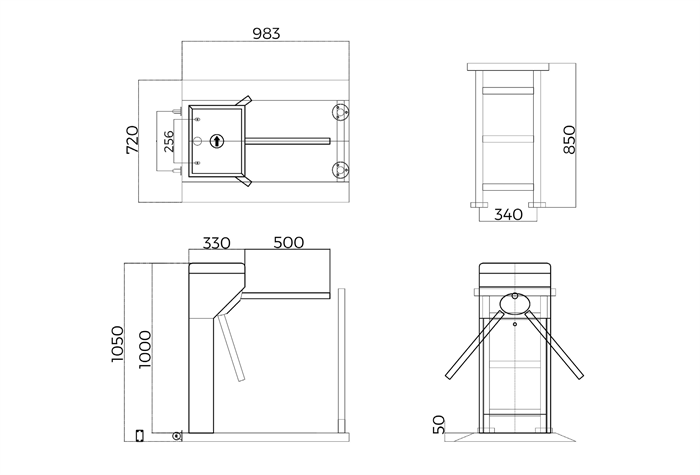

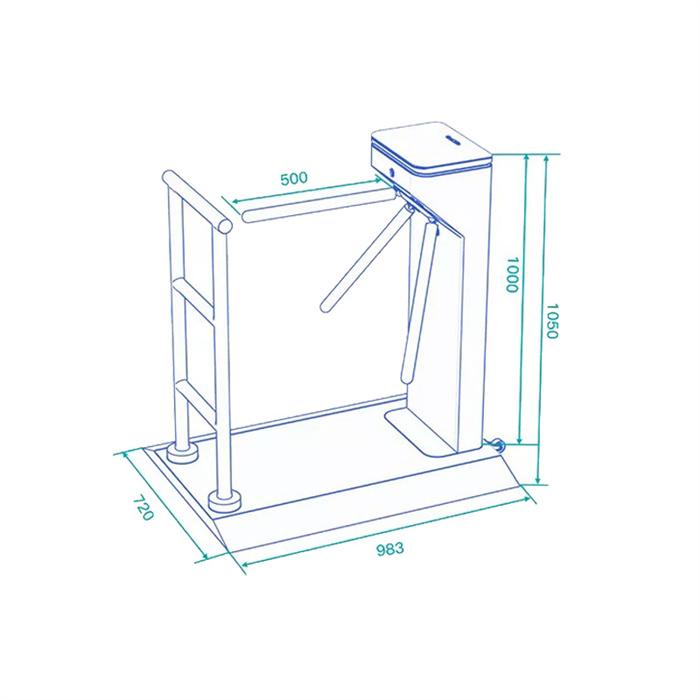

• Dimension: Turnstile : 360 *260 * 980mm
• Base: 983 *720 * 50mm
• Bar: 340*850mm
• Net Weight: 50kg/pcs
• Passage Width: 550mm (Arm length: 500mm)
• Passing Direction: Single directional / Bi-directional
• MCBF: 10 million
• Power Supply: AC220V/110V, 50/60Hz
• Power Consumption: 20W
• Operation Temperature: -20°C ~ 70°C
• Operation Humidity: 0 ~ 95% (No freeze)
• Working Environment: Indoor / Outdoor (shelter)
• Flow Rate: 40 people per minute
• LED Indicator: Unique blue LED strip (front+ top+side)
• Emergency: Automatic arm open when power off

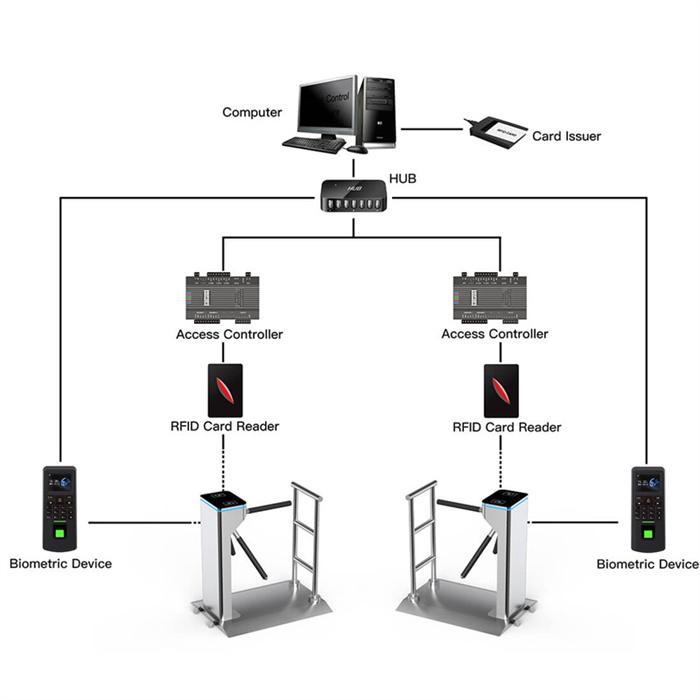

• Communication: Dry contact, Relay signal, RS485
