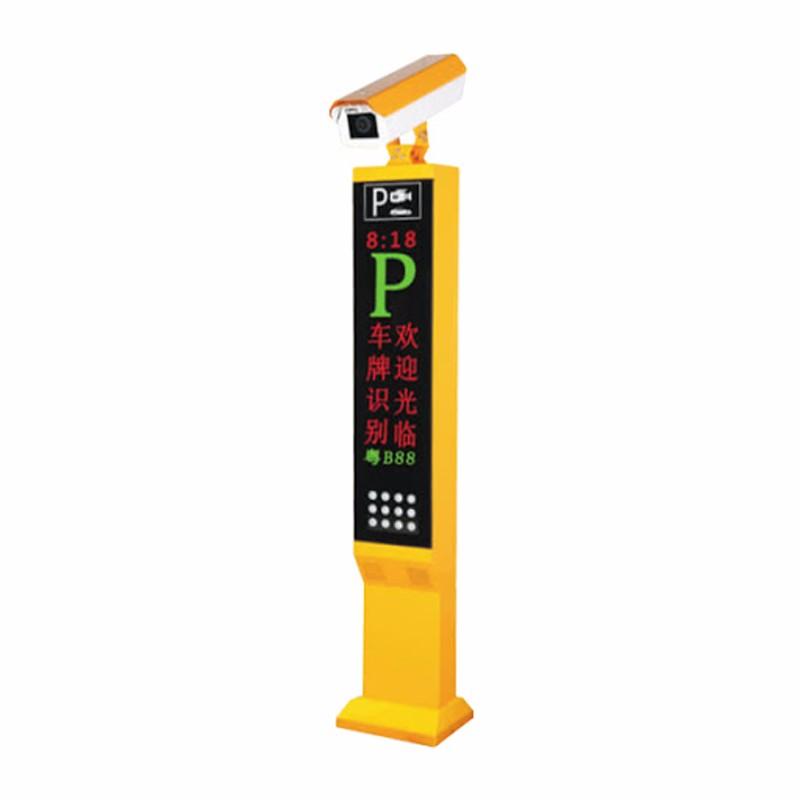

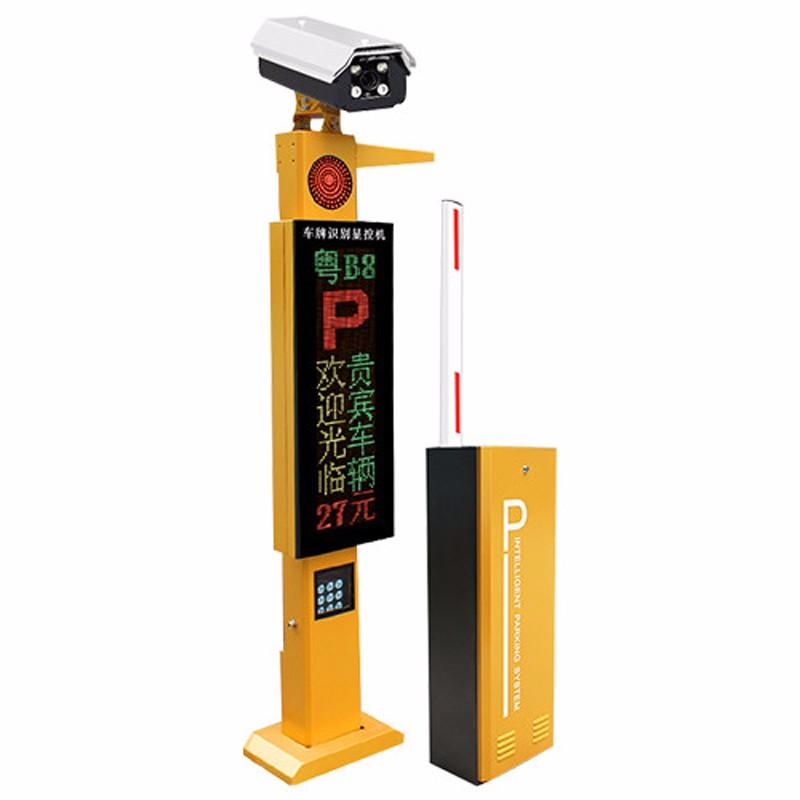

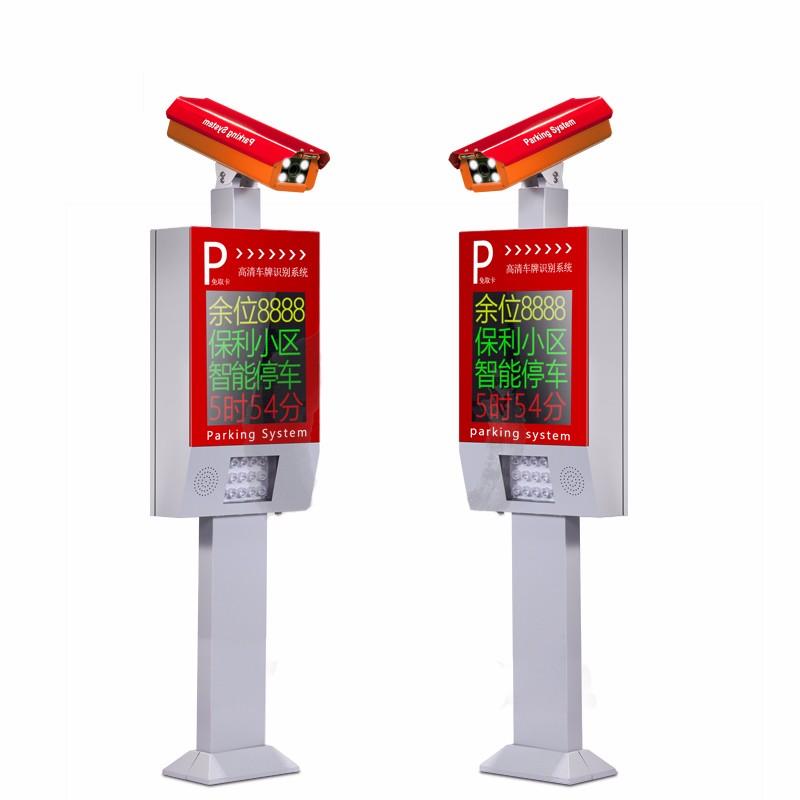

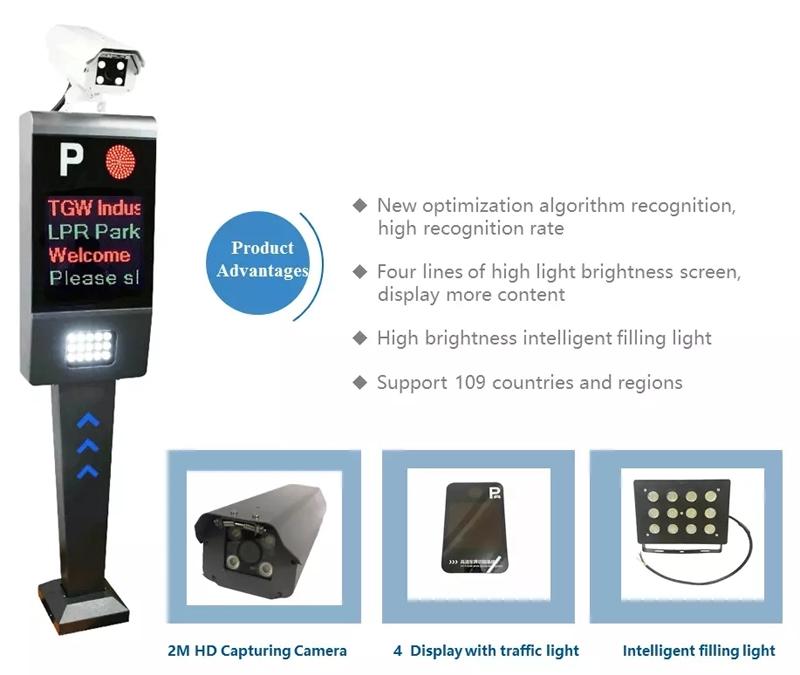

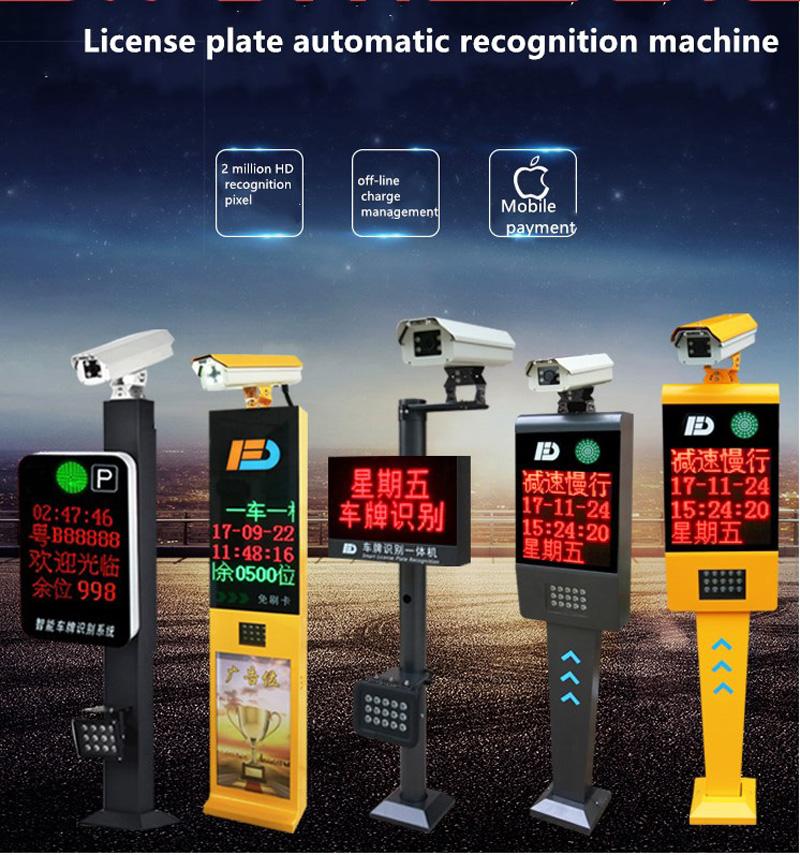

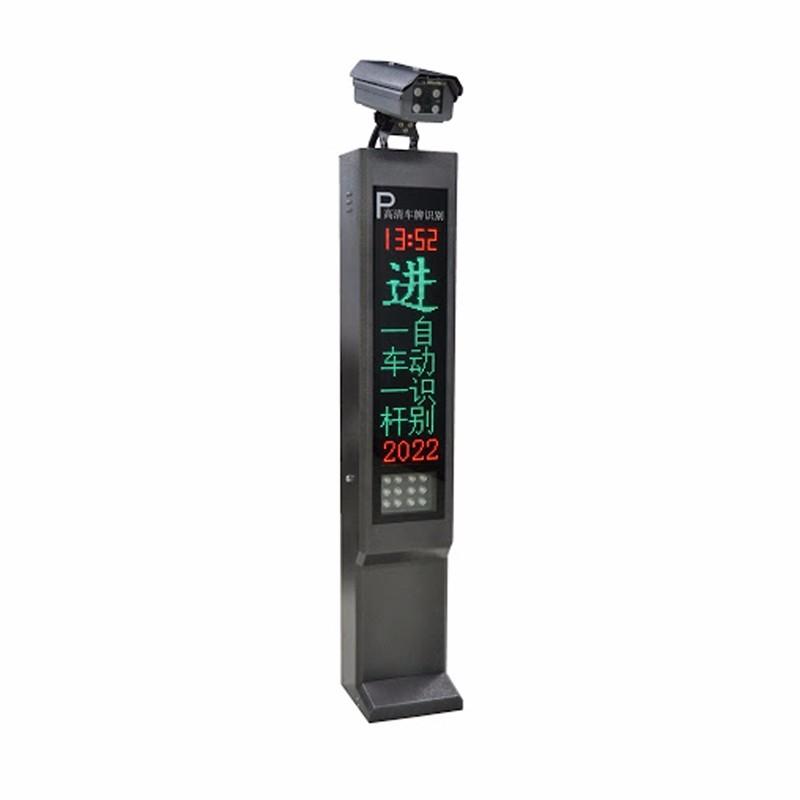

License plate recognition system smart parking equipement for car parking

License plate recognition system smart parking equipement for car parking

Category: License Plate Recognition

Cabinet Material: Thick Iron Plate metal 2.0

Camera: 1/2.8 CMOS, 2M pixel

Startup Speed: 3/6s 50hz

Description

What is LPR(License Plate Recognition) Technology?

LPR or ANPR(Automatic Number Plate Recognition) is a technology that uses optical character recognition on images to read vehicle registration plates to create vehicle location data. It can use existing closed-circuit television, road-rule enforcement cameras, or cameras specifically designed for the task. LPR is used by police forces around the world for law enforcement purposes, including to check if a vehicle is registered or licensed. It is also used for electronic toll collection on pay-per-use roads and as a method of cataloguing the movements of traffic, for example by highways agencies.

License plate recognition can be used to store the images captured by the cameras as well as the text from the license plate, with some configurable to store a photograph of the driver. Systems commonly use infrared lighting to allow the camera to take the picture at any time of day or night. LPR technology must take into account plate variations from place to place.

Advantages of LPR technology:

1. For Parking Lot Management;

2. Identify vehicle plate text and figures automatically;

3. Save labor cost and management difficulty in parking lot management;

4. Improve traffic efficiency;

5. Tickless/ cardless parking lot management;

Automatic number plate recognition system features:

Can identify vehicle license text and figures
Can identify one line and two lines license plate numbers
Can recognize 0-2 letters and numbers 1 to 4 for the license plate numbers
Can identify Chinese, English, Korean, Japanese, etc different languages of license plate numbers
The database can store the capture image, license plate number ,lane number and the time of vehicle through record
License plate number entrance and exit record report output is available
Image size: 768*576pixels
font size: 16*16-48*64 pixels
camera gun level angle: the maximum angle 25 degree into the drive lane
camera gun vertical angle: the maximum angle 25 degree into the horizontal
Minimum brightness: 500lux

Product Category	License Plate Recognition System
Cabinet Material	Iron Plate Metal 2.0
Camera	1/2.8CMOS,2M pixel
Camera Lens	(2.8-12mm)Automatic aperture
Camera Housing	Weatherproof Housing
Fill Light	Automatic light sensor< 30Lux
Display	Led Display With Two Colors
Display Size	128X64cm
Camera Pixel	1920X1080
Comunication Interface	TCP/IP
Network	RJ45,100M
Power Supply	DC12V
Voltage	220 v /110V±10%
Work Temperature	-25℃~70℃
Work Humidity	≤85%
Display Language	Support Multi-language displayEx.Chinese,English,Thailand,Saudi Arabic,Bangladesh,Mogolia and so on
Recognition Rate	>98%
Recognition Speed	<30km/h

Automatic number plate recognition system features:

Can identify vehicle license text and figures
Can identify one line and two lines license plate numbers
Can recognize 0-2 letters and numbers 1 to 4 for the license plate numbers
Can identify Chinese, English, Korean, Japanese, etc different languages of license plate numbers
The database can store the capture image, license plate number ,lane number and the time of vehicle through record
License plate number entrance and exit record report output is available
Image size: 768*576pixels
font size: 16*16-48*64 pixels
camera gun level angle: the maximum angle 25 degree into the drive lane
camera gun vertical angle: the maximum angle 25 degree into the horizontal
Minimum brightness: 500lux
