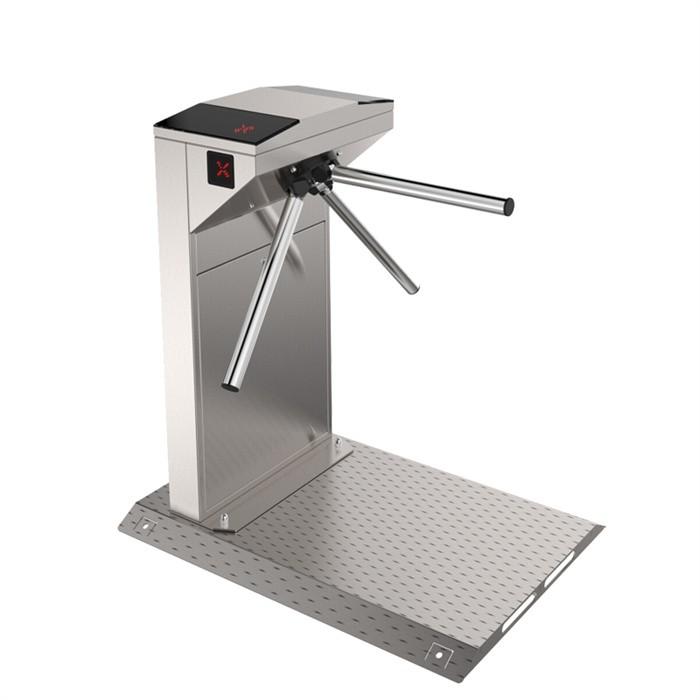

SE-5560 Tripod Turnstile Gate Adapts to Small Installation Space

Comunication: Dry contact, Relay signal, RS485

Dimensions: 332 * 324 * 1000mm

Net Weight: 40kg/pcs

Passage Width: 550mm

SE-5560 Tripod Turnstile Gate Adapts to Small Installation Space Description:

Tripod turnstile, silent and compact bi-directional tripod. The upper part is covered with high quality black tempered glass. Guarantees an average of 15 million steps without impact on the brushless mechanics.
With emergency opening, automatic reset function, LED indicators, alarm and anti-intrusion function. Integrated lights on the doors to mark valid or invalid access. Color, logo and dimensions can be customized.
3 years warranty. Ideal for hotels, gyms, buildings,shopping malls,supermarkets, reception areas, etc.

SE-5560 Tripod Turnstile Gate Adapts to Small Installation Space Technical specifications:

Model No.	SE-5560
Certifications	Compliance CE
Comunication	Dry contact, Relay signal, RS485
Framework Material	304 Brushed Stainless Steel / High end black tempered film glass
Arm Material	304 Stainless Steel

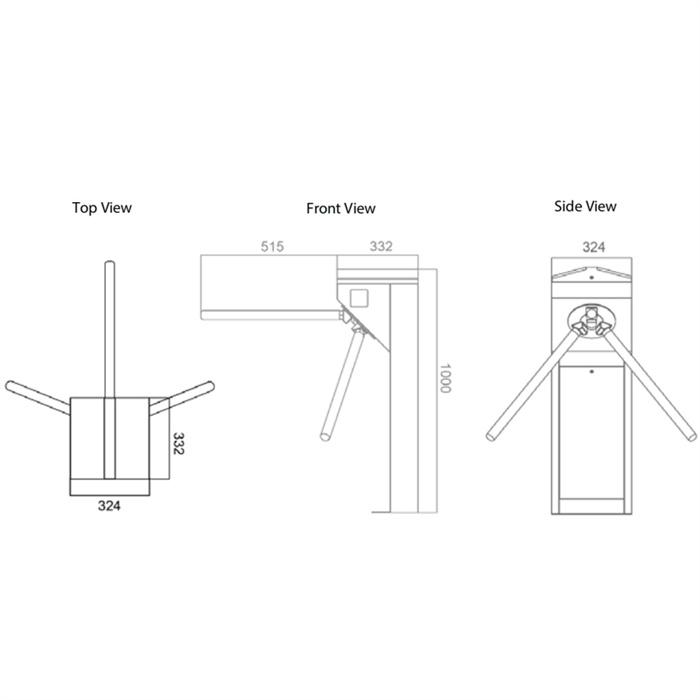

Dimensions	332 * 324 * 1000mm
Net Weight	40kg/pcs
Passage Width	550mm
Passing Direction	Single directional and Bi-directional
MCBF	15 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	40W
Operation Temperature	-20 °C – 75 °C
Operation Humidity	0 ~ 95% (no freeze)
Working Environment	Indoor / Outdoor
Flow rate	35 people per minute
LED Indicator	Two LED indicators on top, front and black
Emergency	Arms will drop down automatically
Flexibility	Integrate with any access control
