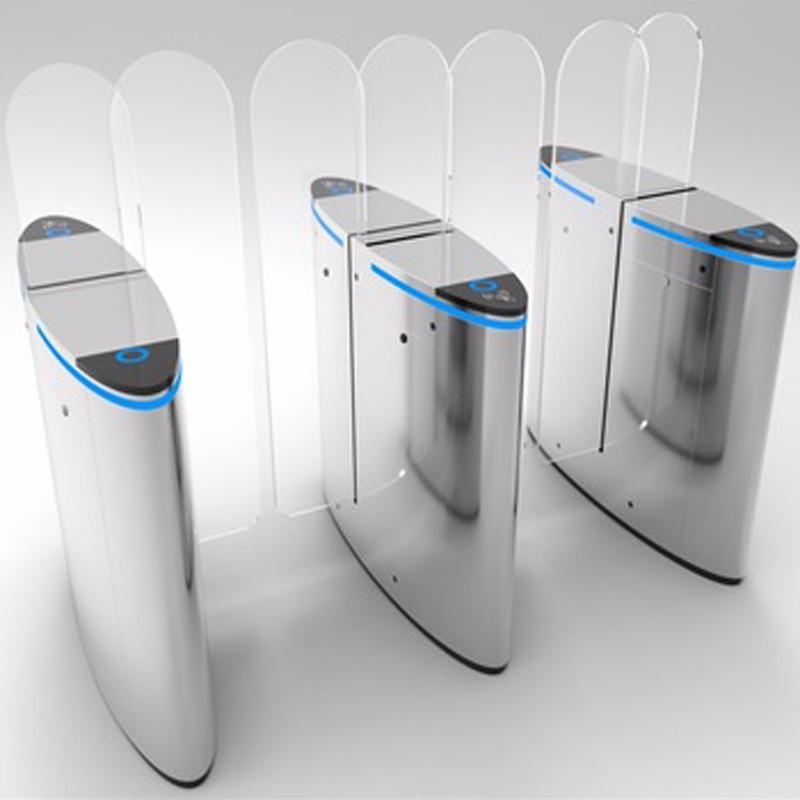

Slim speed gate glass arms high security servo motor speed turnstile gate

Application: Apartment, office, membership club

Material: Stainless Steel 304

Size: 1600*350*1000mm

Working environment: Indoor, outdoor with shed

Parameters:

Structure parameters
Housing material	304 grade stainless steel
Thickness	1.5mm
Arm material	Acrylic
Mainboard	Independent development patent mainboard
Design	Patent appearance
Technical parameters
Size	1600x350x1000mm
Lane width	550mm
Arm Length	260mm
Passing speed	35--50 people/min
Open/close speed	0.2sec
Weight	65KG
infrared sensors	6 pairs
MCBF	5.000.000 times
Application	Indoor or outdoor
Rotating directional	Single way or Bi-directional adjustable
Noise	<55db
Operating temperature	-25 to 70℃
Relative humidity	5% to 95%
Package	Carton box inside. Wooden case outside
Electronic parameters
Power supply	110-220V/AC, 50/60HZ
Rated power	100W
Input signal	Dry contact
Driving motor	Brushed motor
Method of position	Limiter

Application Case:
