SE-TTW6318 Robust Bidirectional Tripod turnstile Made of Black Titanium and Stainless Steel

Framework Material: 304 full stainless steel + black titanium

Arm material: Stainless Steel

Dimensions: 1400 * 280 * 1000mm

Support OEM:Yes

SE-TTW6318 Robust Bidirectional Tripod turnstile Made of Black Titanium and Stainless Steel Features:

Easy to install and maintain.

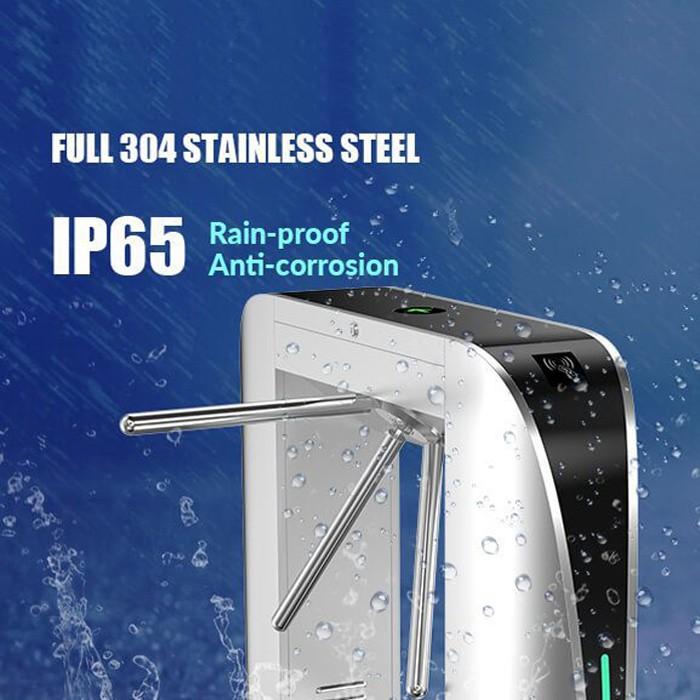

The body is anti-rust, waterproof and durable.
It is ideal for both indoor and outdoor use.
Supports any type of external device (display, counter, facial recognition, push-button, card collector, RFID wristband card collector, RFID wristband collector, coin inserter, barcode/QR reader, etc.).
In case of emergency, the horizontal arms of the tripod will automatically lower to allow free passage.
Anti-tail function: only one person passes at a time

SE-TTW6318 Robust Bidirectional Tripod turnstile Made of Black Titanium and Stainless Steel Specifications:

Model No.	EF-TTW6318
Framework Material	304 full stainless steel + black titanium
Arm material	Stainless Steel

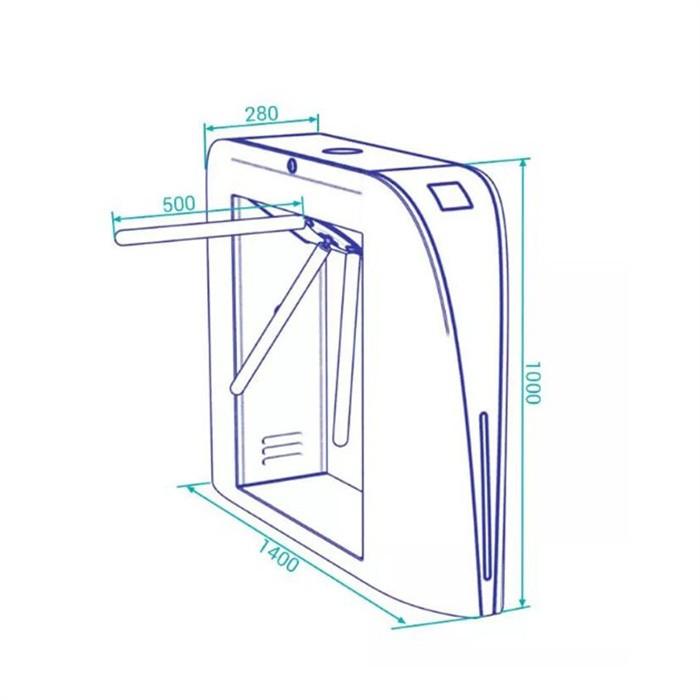

Dimensions	1400 * 280 * 1000mm
Net Weight	60kg/pcs
Passage Width	550mm (Arm length: 500mm)
Passing Direction	Single directional / Bi-directional
MCBF	10 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	20W
Operation Temperature	-20 °C – 75 °C
Operation Humidity	0 ~ 95% (No freeze)
Working Environment	Indoor / Outdoor
Flow Rate	35-40 people per minute
LED Indicator	Yes
Emergency	Automatic arm open when power off
Communication	Dry contact, Relay signal, RS485
