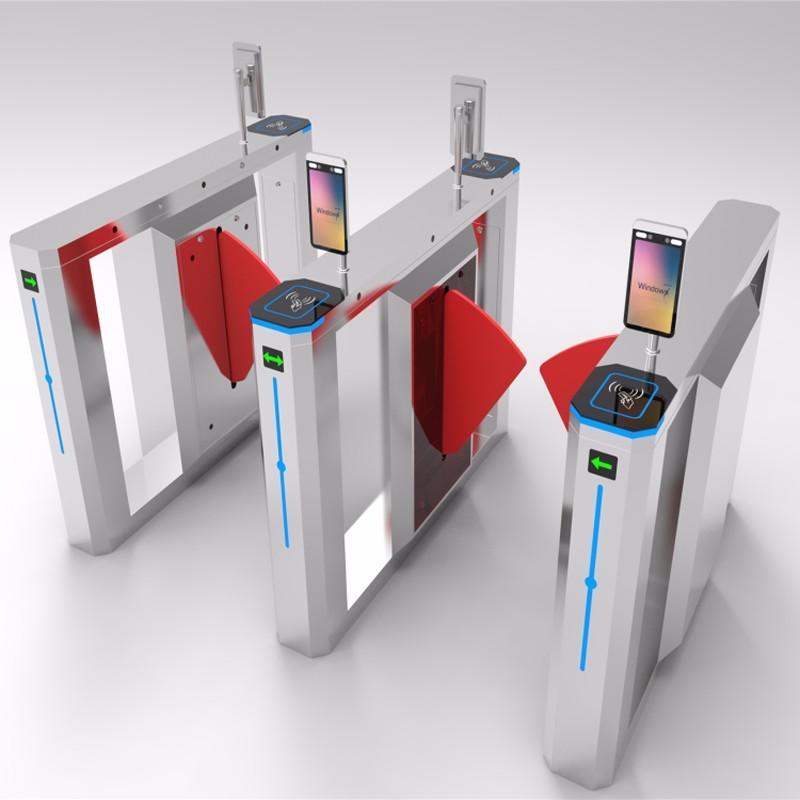

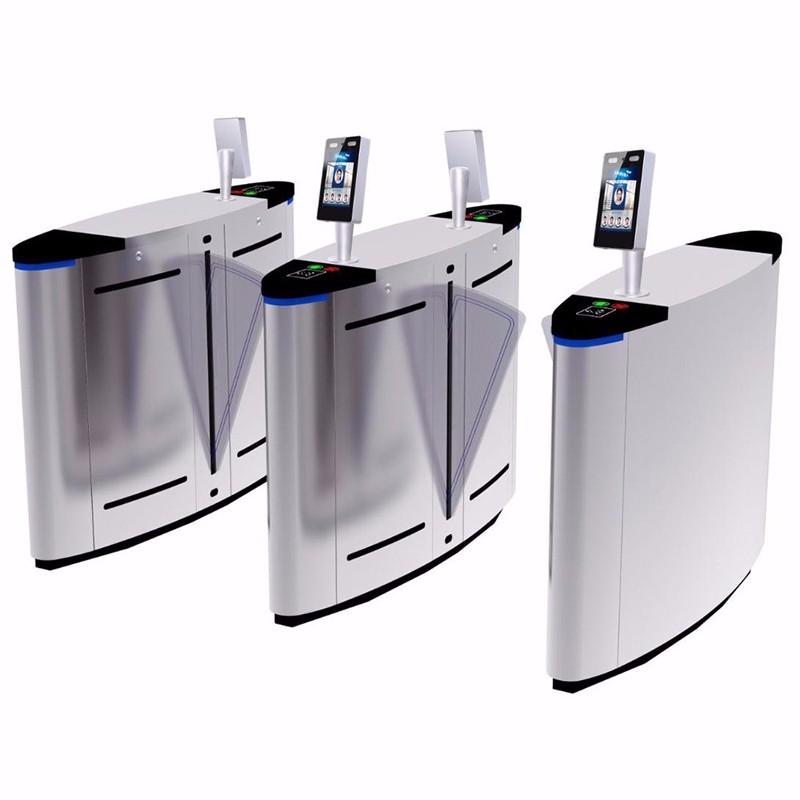

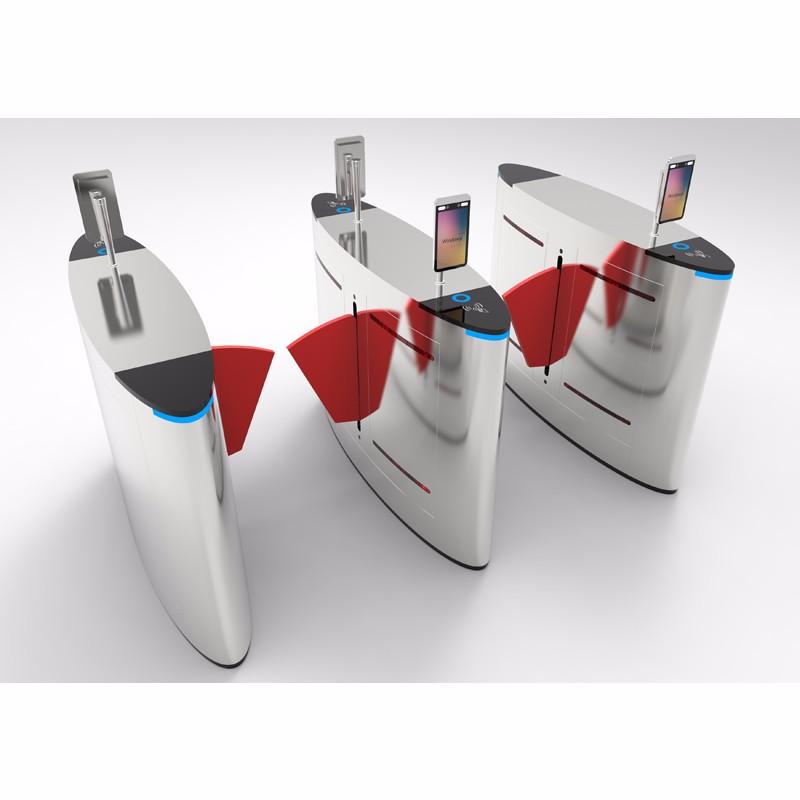

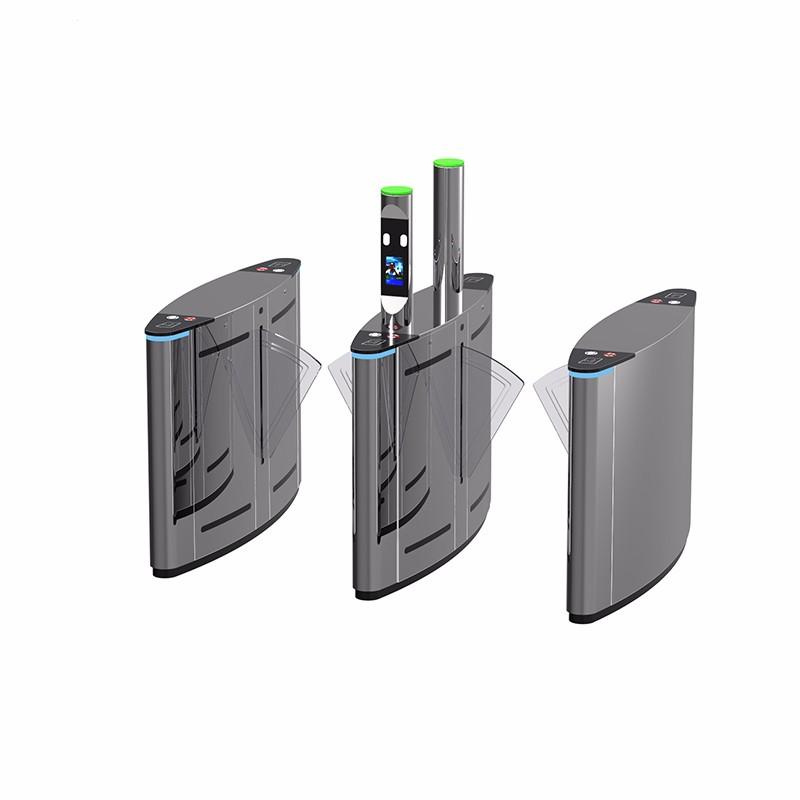

Flap Barrier Traffic management Metro or Subway Turnstile Gate Access Control Flap Barrier Gate With Face Recognition

Flap Barrier Traffic management Metro or Subway Turnstile Gate Access Control Flap Barrier Gate With Face Recognition

Cabinet material: SUS304 Stainless Steel

Power Supply: AC220V± 10% 50HZ±10%

Operating Temperature /Humidity: -28 °C- 60 °C/5%-85%

Working environment: indoor, outdoor (with a tent over)

Description

Flap Barriers Gate Features:

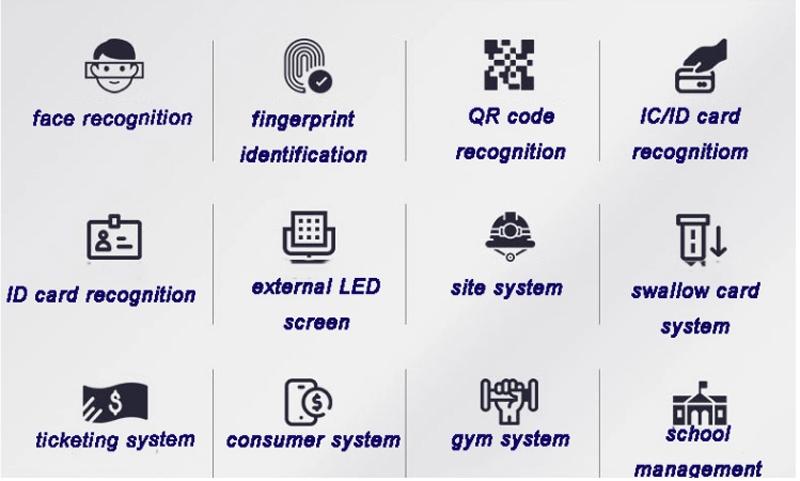

Luxury Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Flap Barriers Gate Datasheet:

Framework	304 Stainless Steel

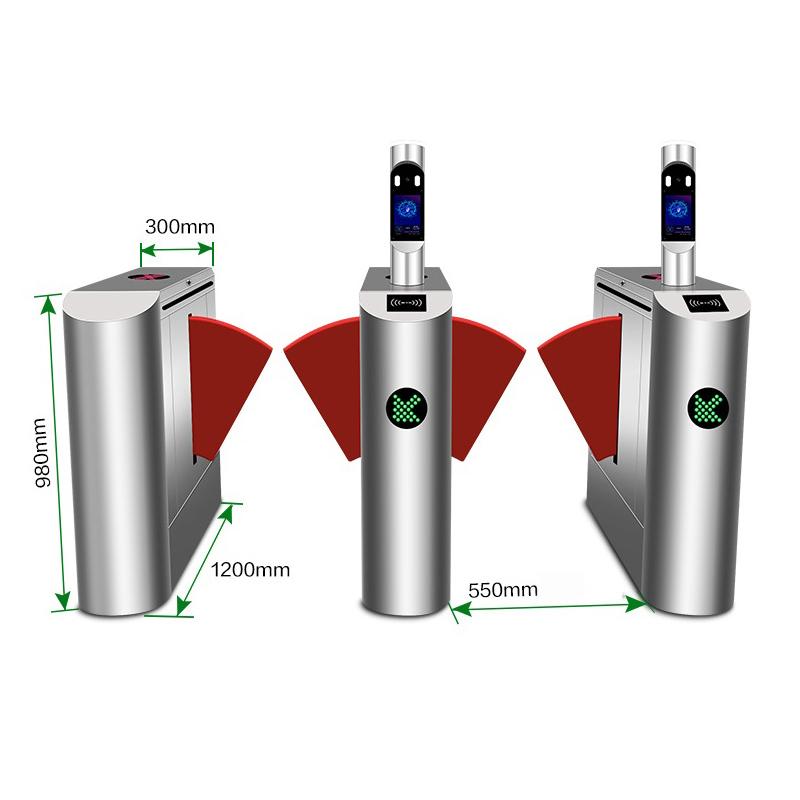

Dimensions	1200300980 mm
work voltage	AC220V±10% 50HZ±10%
Core	DC24V solenoid valve
passage width	600mm
Max bearing force	50kg
Rated power	120W
Operating temperature	-25℃ ~ +60℃, RH ≤90%
Related humidity	≥90%RH
Comunication Interface	RS485,distance ≤1200m
Power supply	AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:	30-45persons per minute
card window	2

Flap Barriers gate Mains Features:

Functions and features	full-auto	semi-auto	manual
1、Malfunction self-check and alarm reminder, ease of maitenance and use	√	×	×
2、Running method can be set through small buttons on the control panel	√	√	×
3、How arm reacts in emergency	drop automatically	drop automatically	no movement
4、How arm reacts when power on	go up by hand	go up by hand	no movement
5、Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)	√	√	×
6、Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on	√	√	×
7、Unique positioning, self reset, one arm always in the horizontal level	√	√	×
8、LED lamp indicator	√	√	×
9、when open signal is given, arm rotate to a certain degree	√	×	×
10、how arm reacts when people passing	rotate automatically	push by hand	push by hand
11、one direction or bi-direction flow control	√	√	adjust by hand
12、work directly with PC for remote control and management	√	√	×
13、Bi-direction Anti reverse rotation	√	√	×

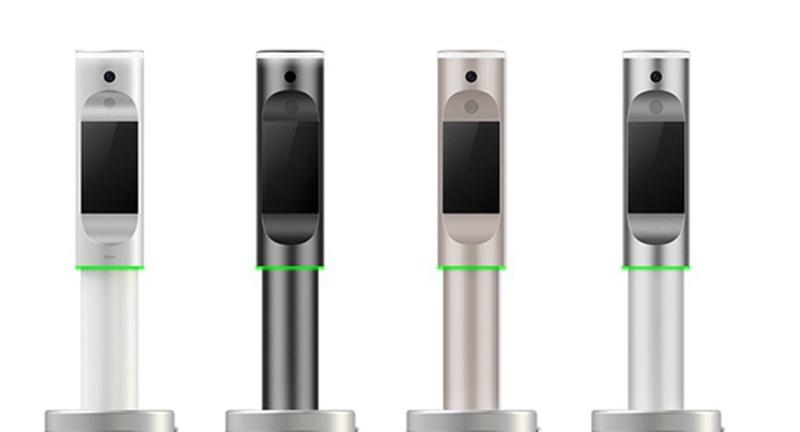

Face Recognition (circular Android version)

Flap Barrier Turnstile Product presentation:

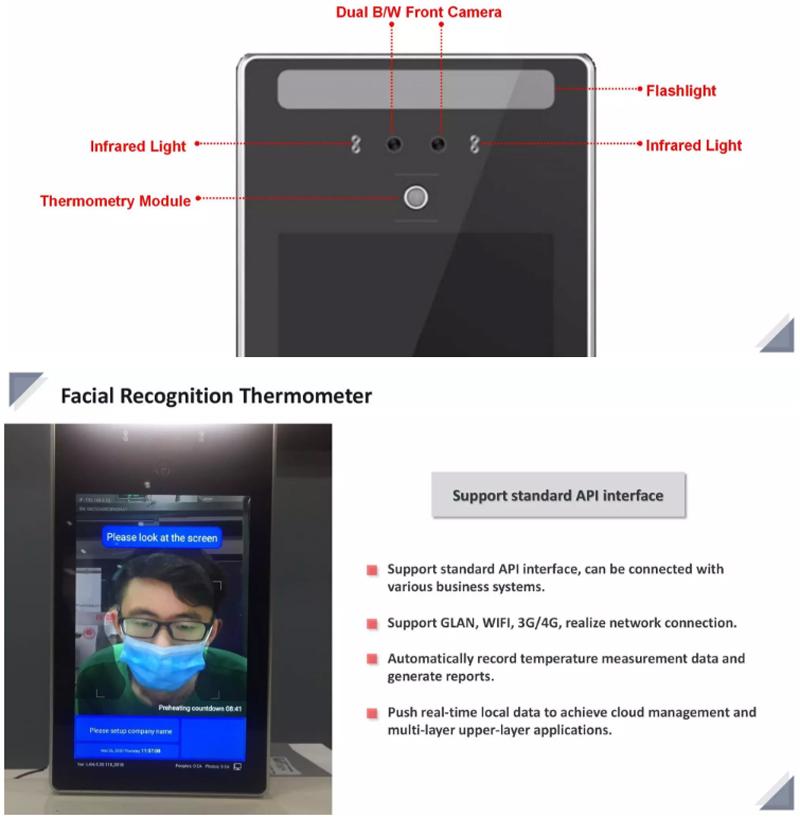

The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition. And it can present the corresponding feedback on the screen. The product can recognize 5 people at the same time, the farthest can recognize the human face as far as 5 meters, and face tracking and detection takes about 20ms. Face feature extraction takes about 300ms; face comparison takes about 0.1ms. And it has good robustness to light and wear glasses and so on. This product can be equipped with RFID card module, so the system can be realize to use card and face recognition. This product supports a variety of hardware functional interfaces (including: HDMI high-definition output, serial port input/output, network interface/ Wi-Fi access); It has a complete software interface (including: device management, personnel/photo management, record view, etc.). At the same time, this product can connect with the company developed a variety of applications, such as: attendance system, access control system, visiting system, real name certification. Application scene Suitable for office area, gate passage, hotel, office building, school and other places where face recognition gate is needed.

Flap Barrier Turnstile Product features:

1.Support external HDMI large screen; 2.Support external ID card / RFID reader; 3.Support serial port input and output, support Wiegand output, output content supports configuration; 4.Support the RFID card , can also achieve the integration of human cards; 5.Dynamic face detection based on video stream and tracking recognition algorithm are adopted; 6.Support to store 50, 000 face photos, 1 million recognition records; 7.The accuracy rate of 1: N recognition is high (99.7% under 97% pass rate). 8.Recognition speed is fast, face tracking and detection takes about 20ms time, facial feature extraction takes about 300ms, and face comparison takes about 0.1ms. 9.Support stranger detection, stranger level can be configured; 10.Support face recognition or stranger detection of the scene of the photo preservation; 11.Support interface docking; 12.Support customization; 13.Support screen display content configuration; 14.Support identification distance configuration.
