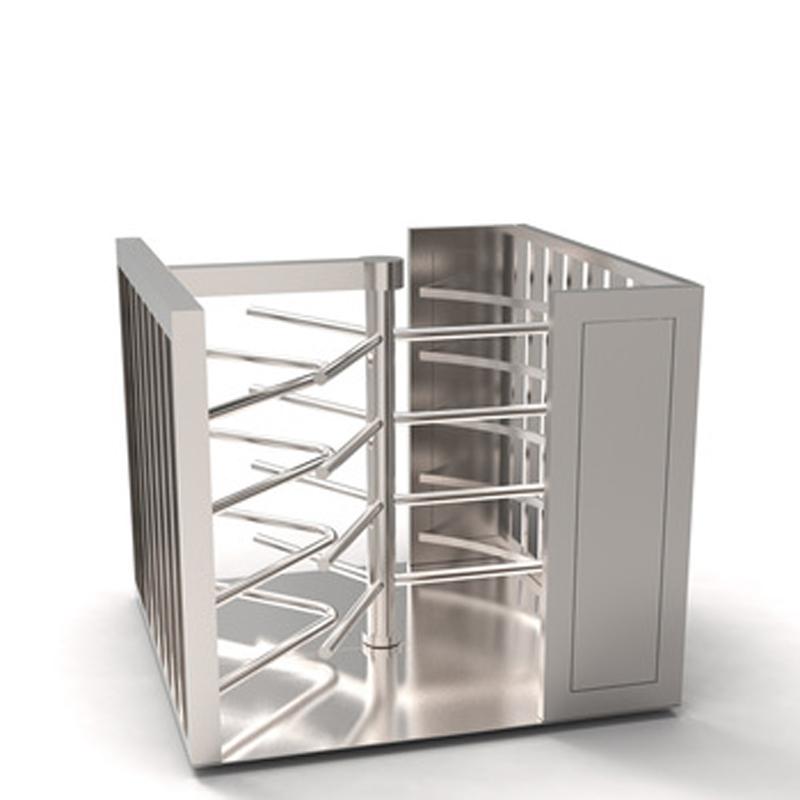

RFID reader card door access control revolving doors half height turnstile

Dimensions

1580*1600*1150mm

Pass width

600mm

Weight

150KG

Passage direction

Single directional / Bi-directional

Working environment

Indoor / outdoor

Power supply

AC220V±20%V, 50Hz;

Working temperature

-40℃~70℃;

Working humidity

<95%

Passing rate

30 people/min;

Input interface

RS485 electrical standard communication distance<1200 meters

Communication interface

35~40 person/min

Material

Standard 304 stainless steel

Mechanical reset function

Use mechanical reset function to prevent personal injury caused by electrical fai

Structure

Brushed stainless steel, rust-proof, strong and durable

Power-off and gate-opening functionAfter power off, the gate lever is automatically unlocked and becomes a free passage mode, which is convenient for evacuation of people;

Anti-rotation functionAfter the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backward;

The shape can be brushed stainless steel or sprayed, and the color is optional.
