Description

Flap Barrier Turnstile
Flap Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The Q203 is an attractive flap turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.


Flap Barrier Turnstile Specification:
| Model | SE203 |
| Size | 1400X300X990MM |
| Material | 1.2MM SUS304 wire drawing 400# |
| Arm material | 15mm Acrylic+Led light bar |
| Pass Width | 550mm |
| Passage direction | Single directional/Bi-directional |
| Pass rate | 35-40 persons/minute |
| Operating time | 0.2 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | 30%~95% |
| Working temperature | -40C~+70C |
|
Working environment |
Indoor |
|
Communication interface |
RS485,Dry contact,TCP/IP |
|
Mechanism |
Brushed Motor+Germany Belt |
|
Infrared sensor |
5 pairs |
| MCBF | 5,000,000 Cycles |
| Application | Airports,Hotels,Goverment Halls,etc |

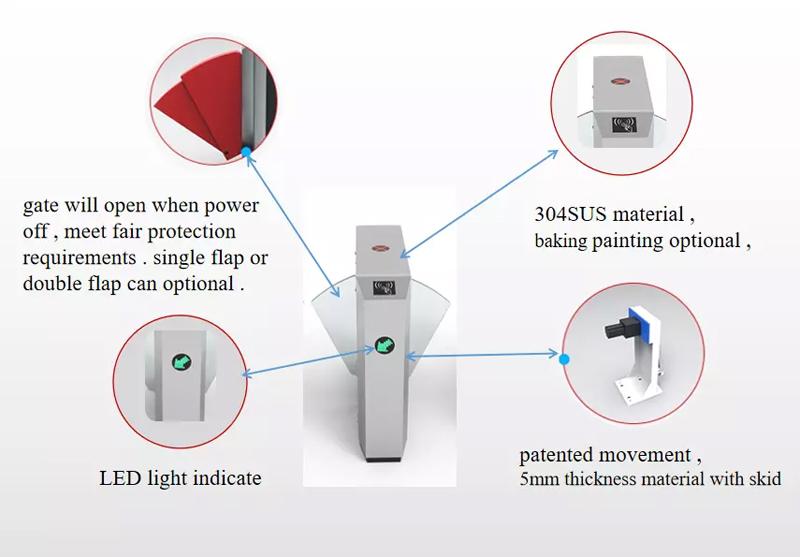

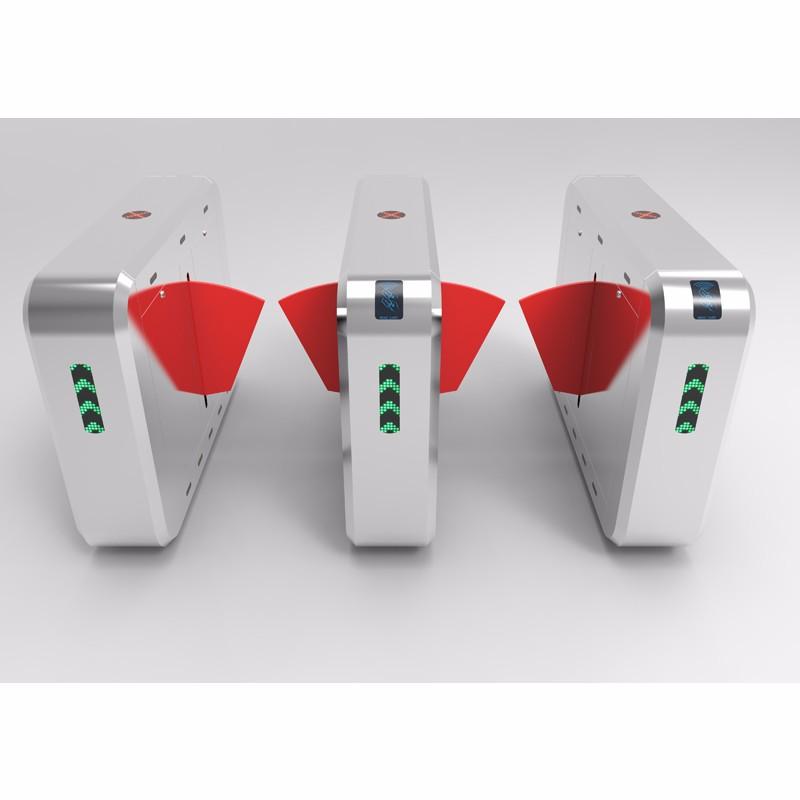

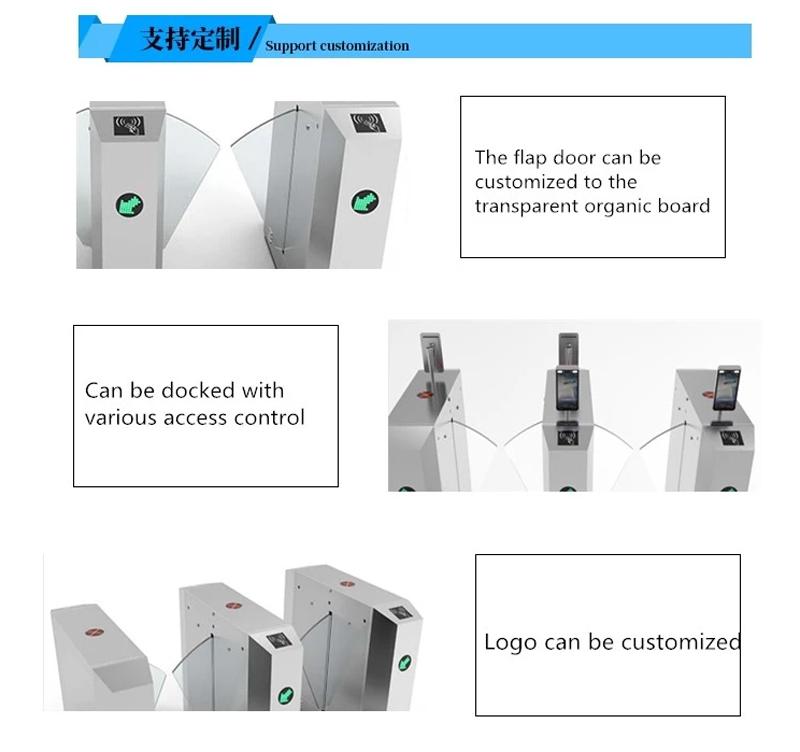

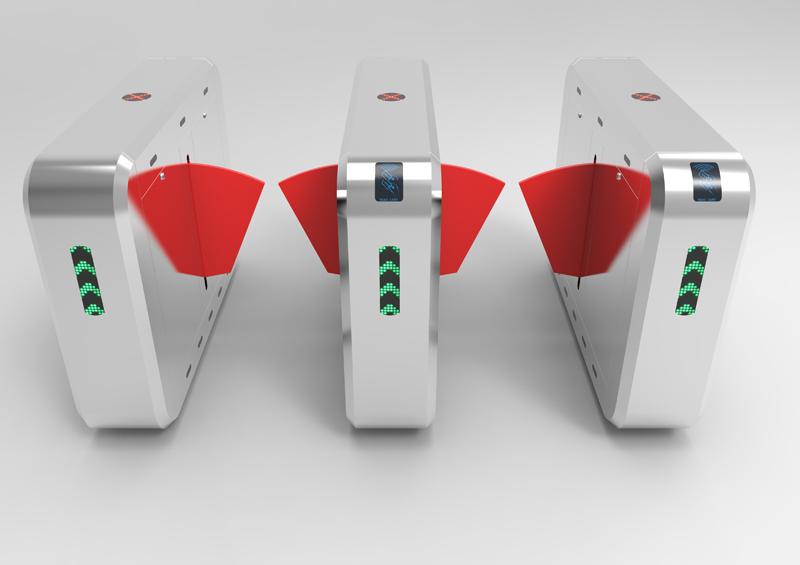

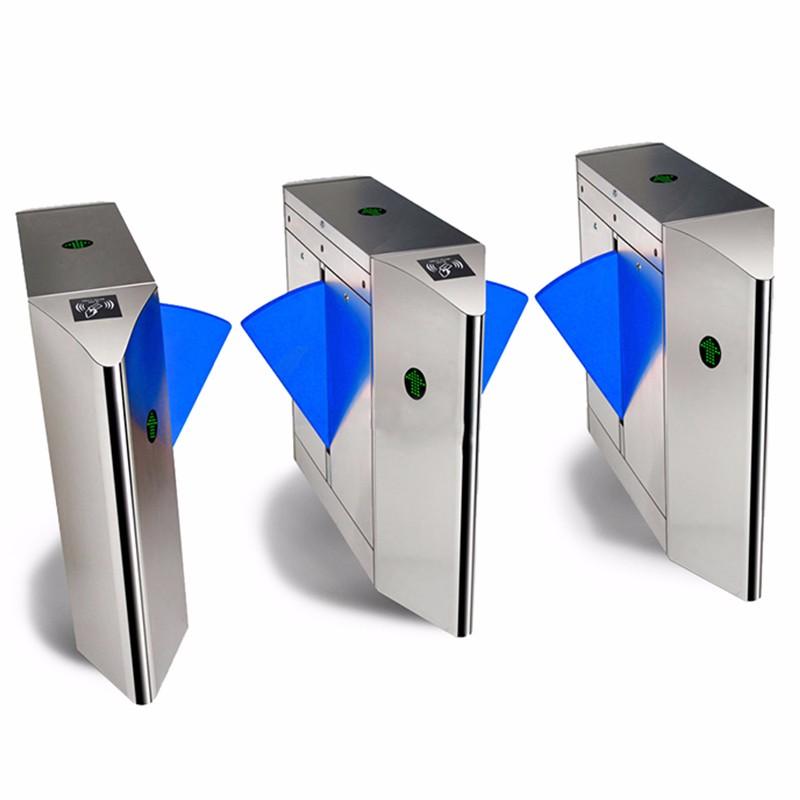

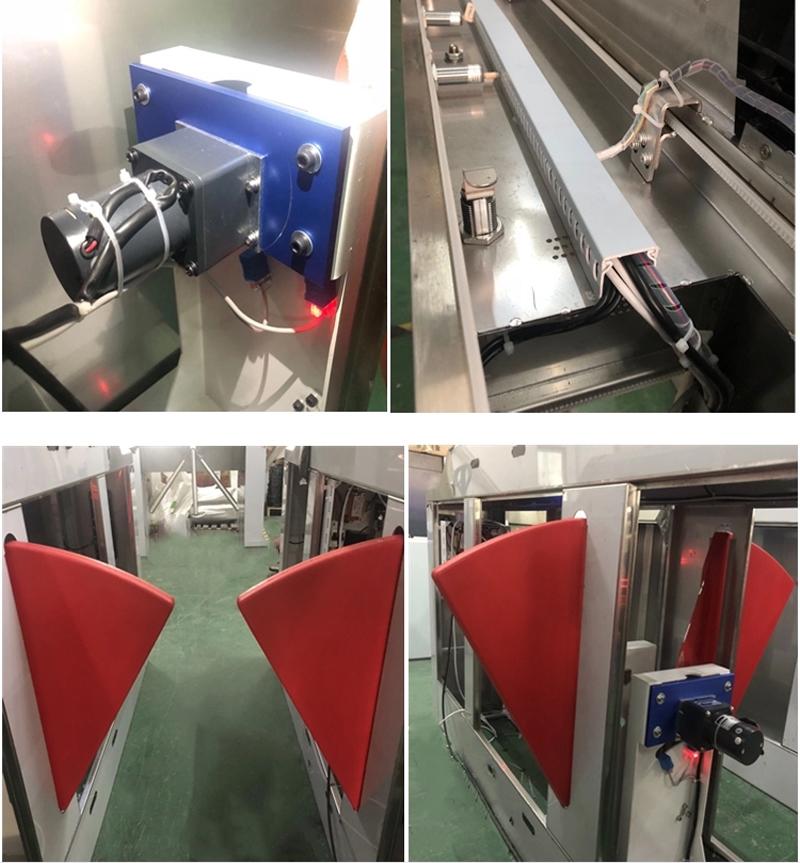

Flap Barrier Turnstile Detail Photos:

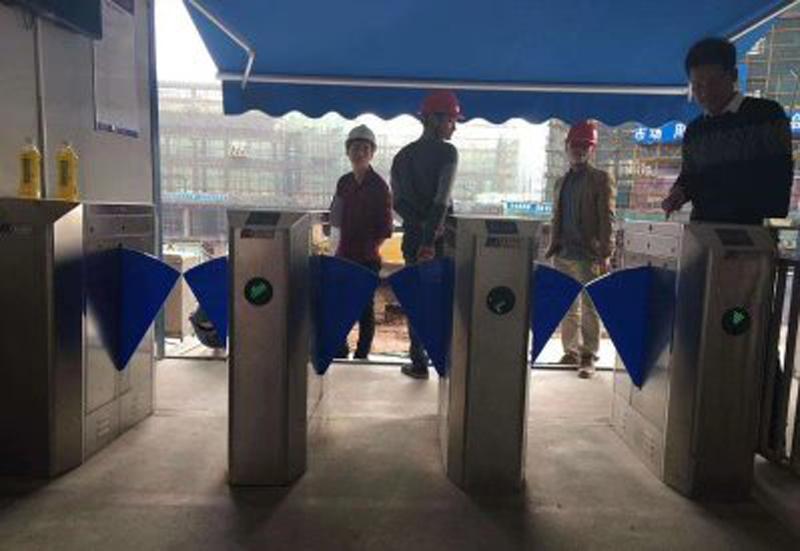

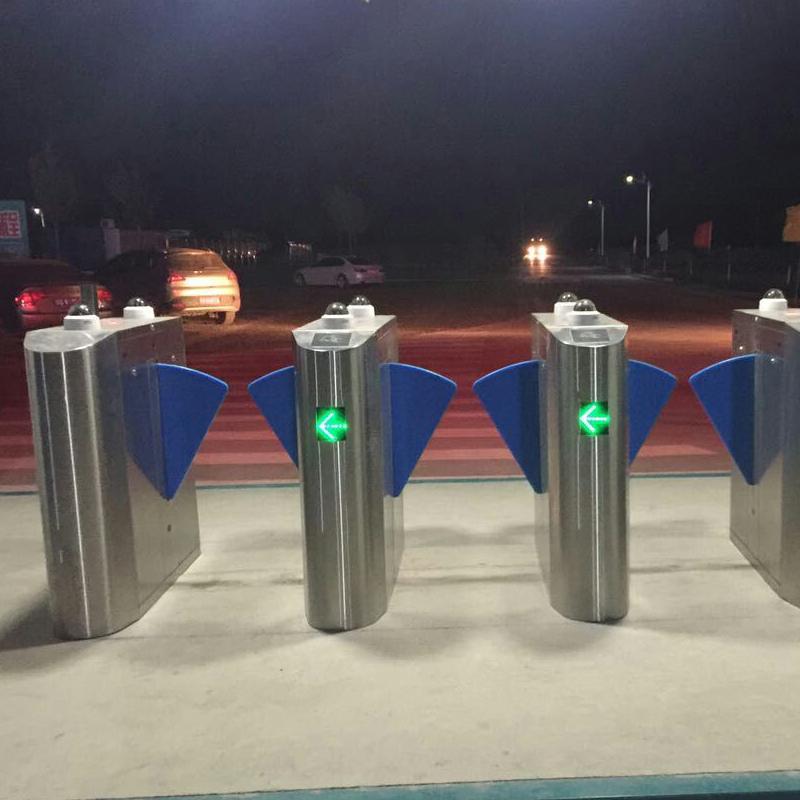

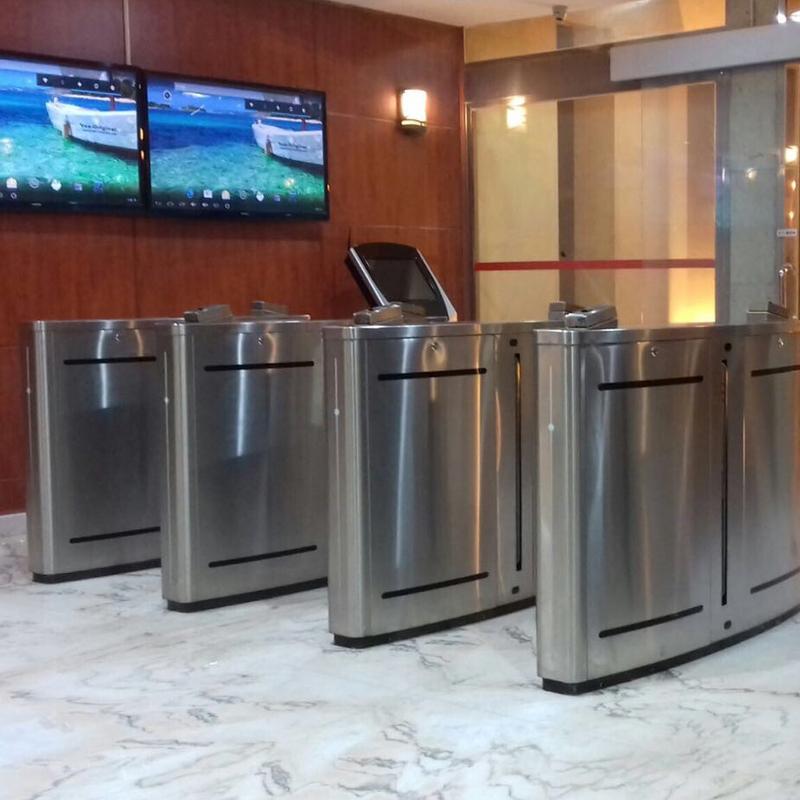

Flap Barrier Turnstile Application Case:
