CE Approval Entrance Turnstile Gate Swing Barrier Gate Fast Speed Pedestrian Access Control System

Description

Product Application

Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Technicial

Main Features

1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs

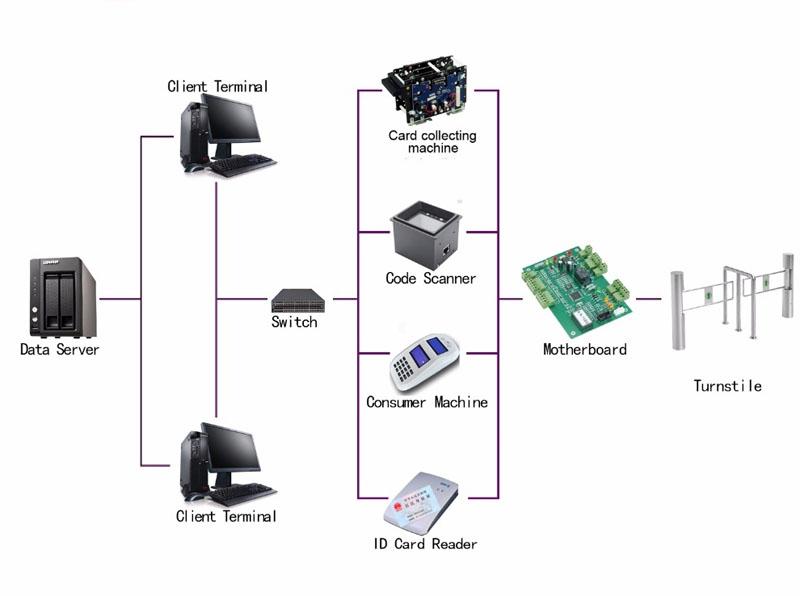

10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control

13. Led lamp indicator

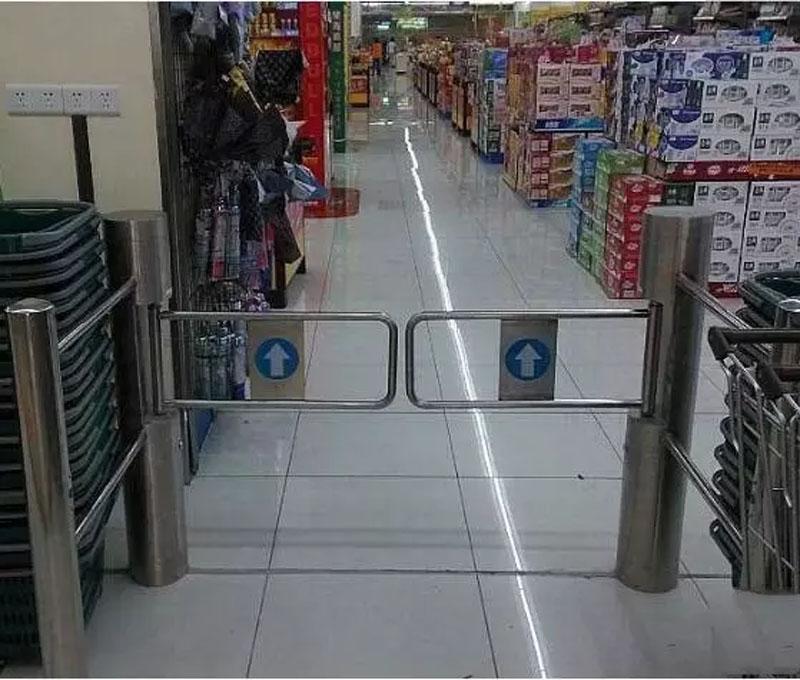

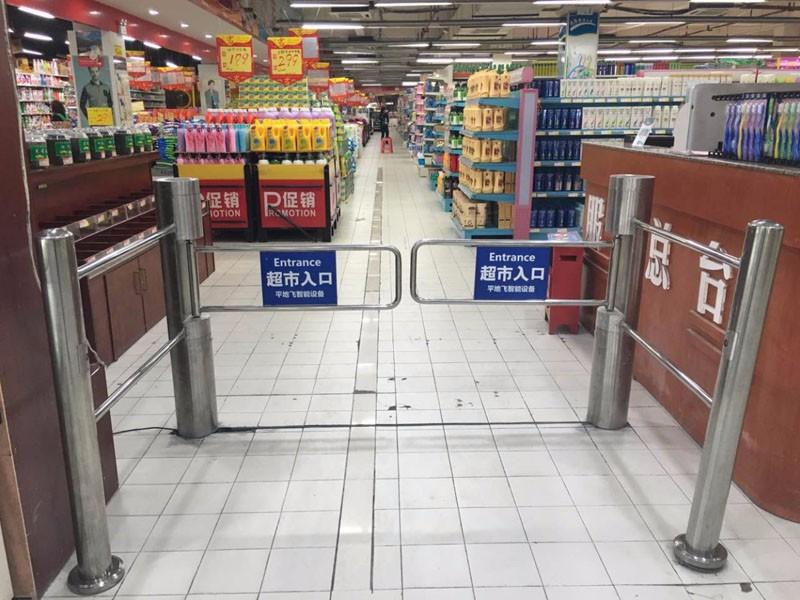

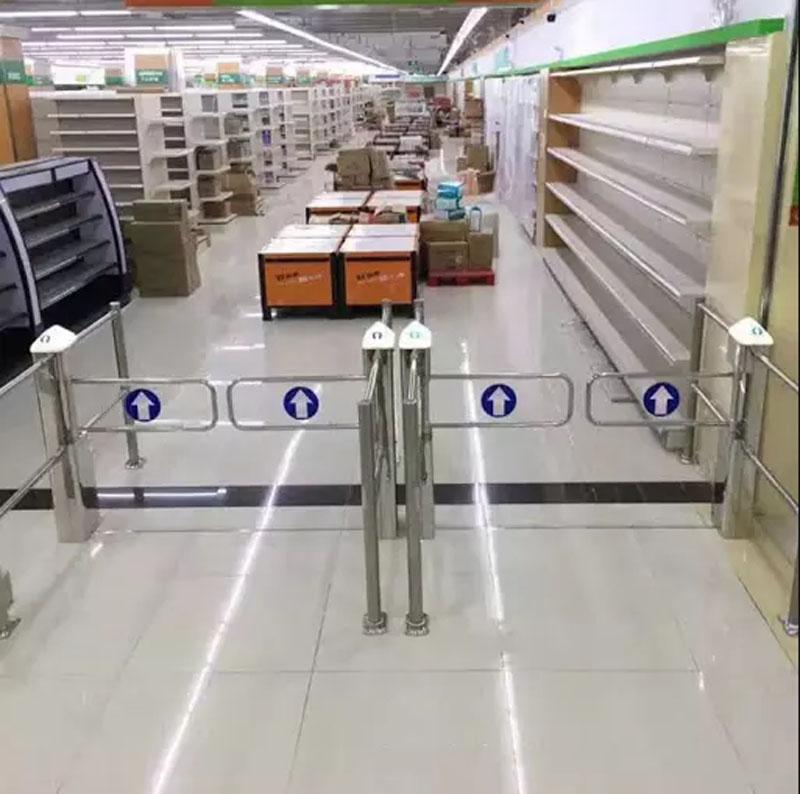

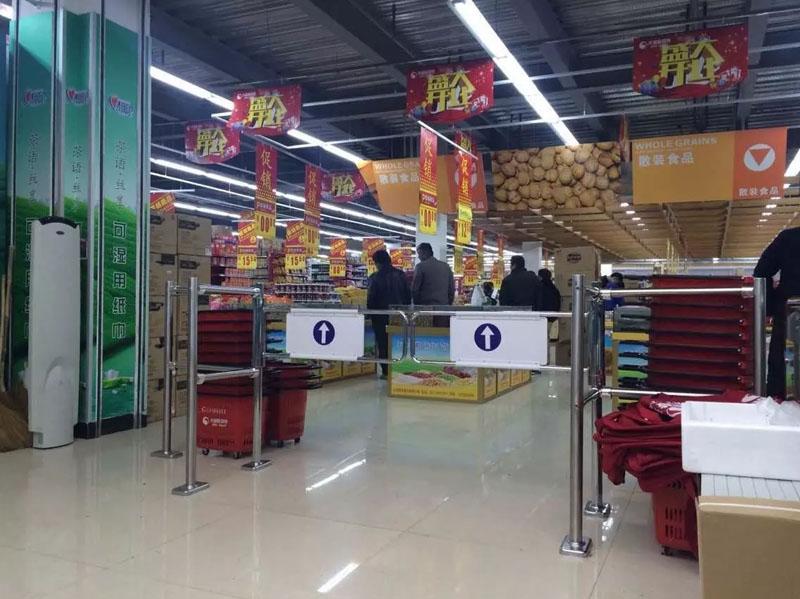

Application Case:
