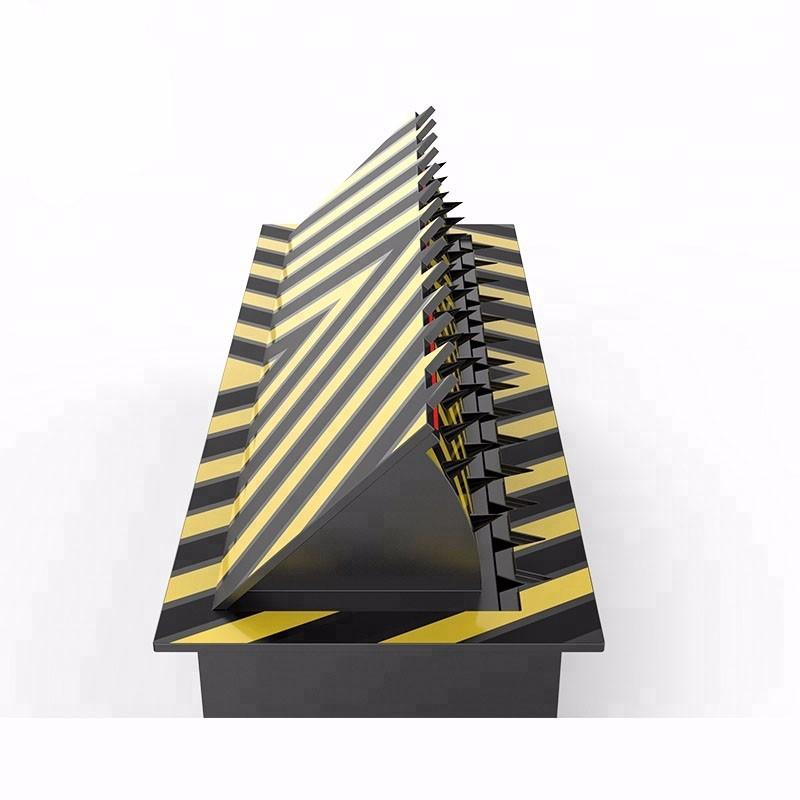

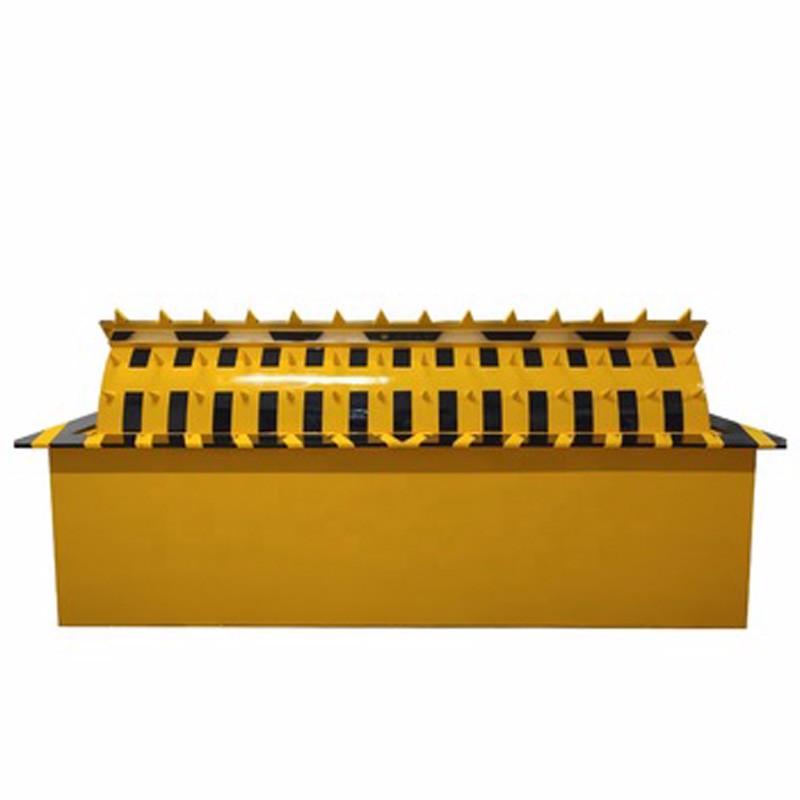

Anti-terrorist Hydraulic Barrier Traffic Spike Road Blocker Machine Factory Outlet Road Blocker Price

Anti-terrorist Hydraulic Barrier Traffic Spike Road Blocker Machine Factory Outlet Road Blocker Price

Tailored service: SIZE, control system

Type: Anti-terrorism

Length: 1000-8000mm,OEM

Name: hydraulic electronic road blocker

Description

Product Application

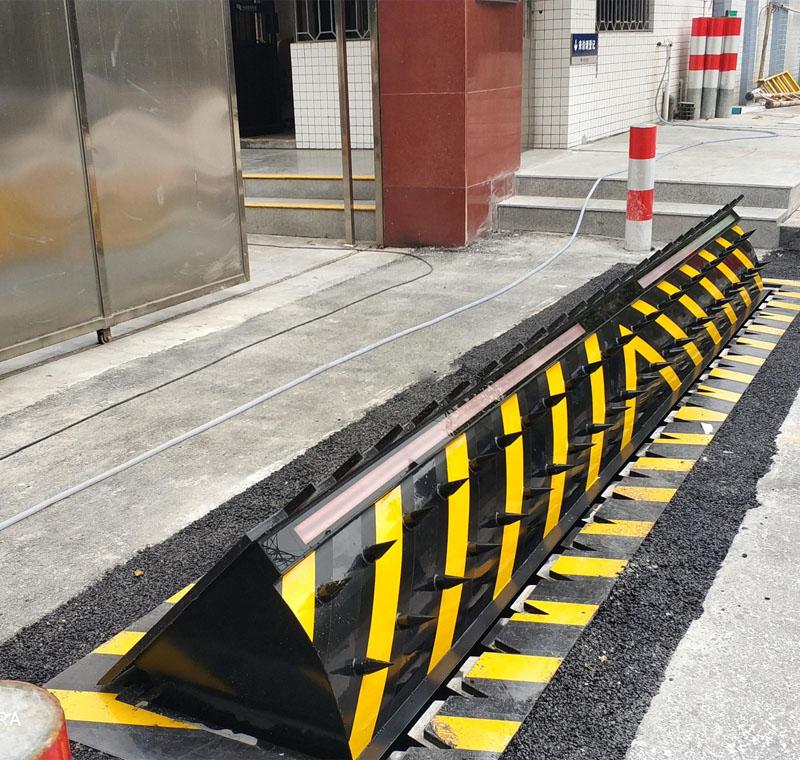

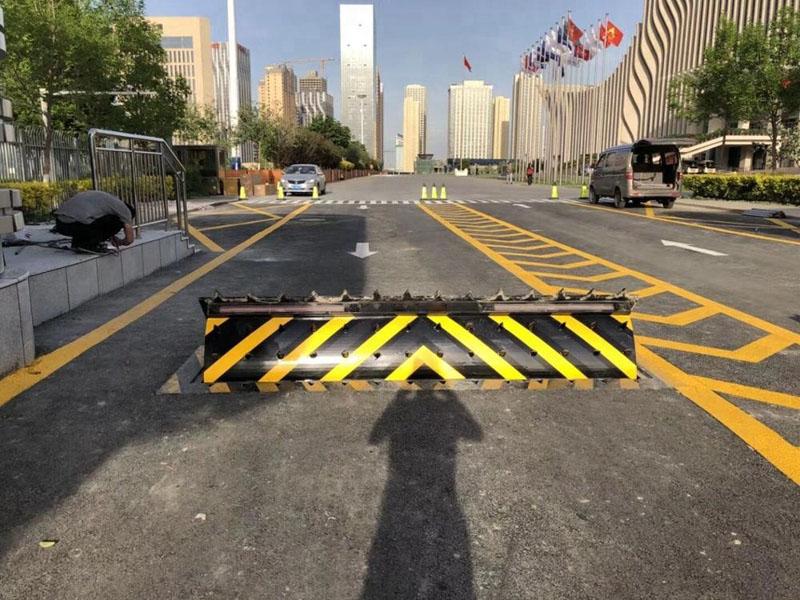

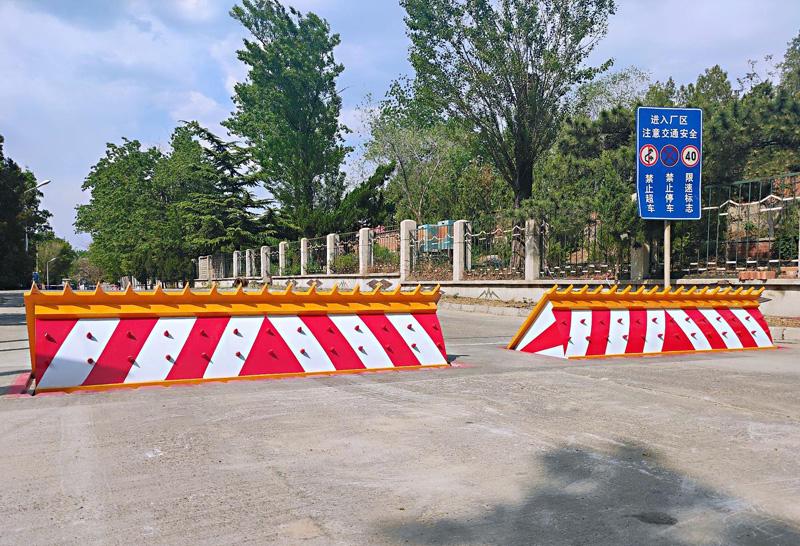

The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government agencies,
embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.

1.The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend.

2.Vehicle passes

3.The roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.

Specifications

Control system		Hydraulic (liquid crystal display, English, Russian, Turkish, Spanish,different language menu, the language is customized)
Power supply voltage		380V (control voltage 24V)
System Power		3.7KW
Pressure capacity		120 tons of container trucks
Anti-collision		K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
Protection level		IP68 (dustproof, waterproof)
Open time		2~6S (adjustable)
Closing time		2~6S (adjustable)
Communication		RS485 ≤ 1200M
Degree of elevation		450mm-800mm
Working temperature		-45 ° C --- 75 ° C
Hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum cannot exceed 70KGF. Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.
SPECIFICATIONS FOR HYDRAULIC ROADBLOCK MACHINE
Model	Dimensions		Flip height	Remark
RB-101-3	L3000W1050H600mm		450-600mm	Size can be customized
RB-101-4	L4000W1050H600mm		450-600mm	Size can be customized
RB-101-5	L5000W1050H600mm		450-600mm	Size can be customized
Thickness Customizable size: 20-30mm Increased customizable size: 400-800mm

Main Features

1. Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down
2. Micro-control technology makes bollards work stable and reliable, Easily integrate to other systems
3. Compatible with road barrier, Turnstiles and other access system control to achieve automatic control
4.Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Controller display: LCD and LED
8. Swiping card system: built-in card reader to control bollards up&down
9. Road barrier integrate with Bollards: built-in access control realize road barrier, A/C and bollards in one-card
10.Connected with Computer Management OR Charging Systems
