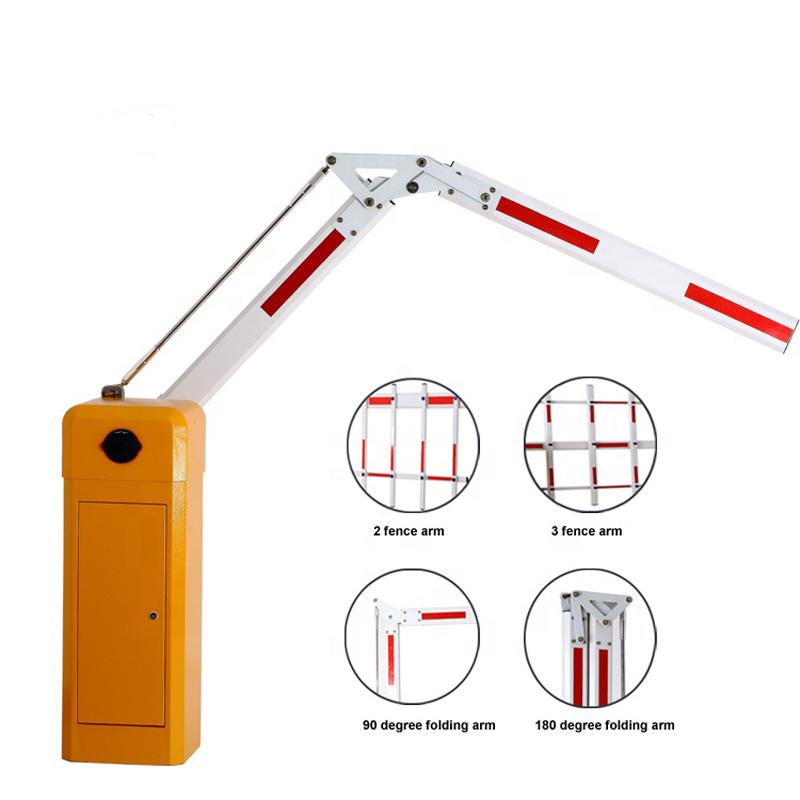

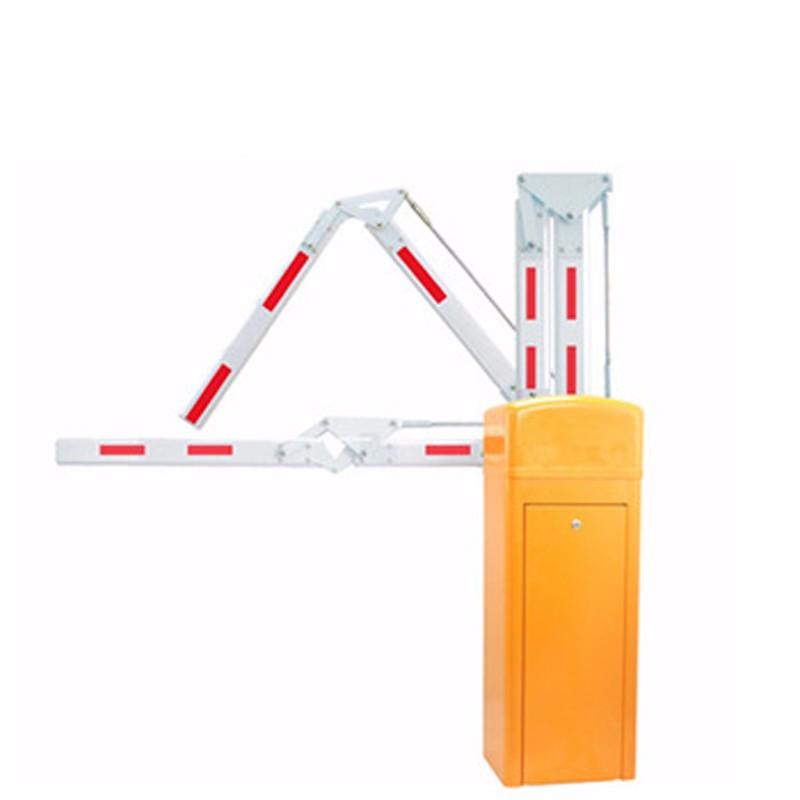

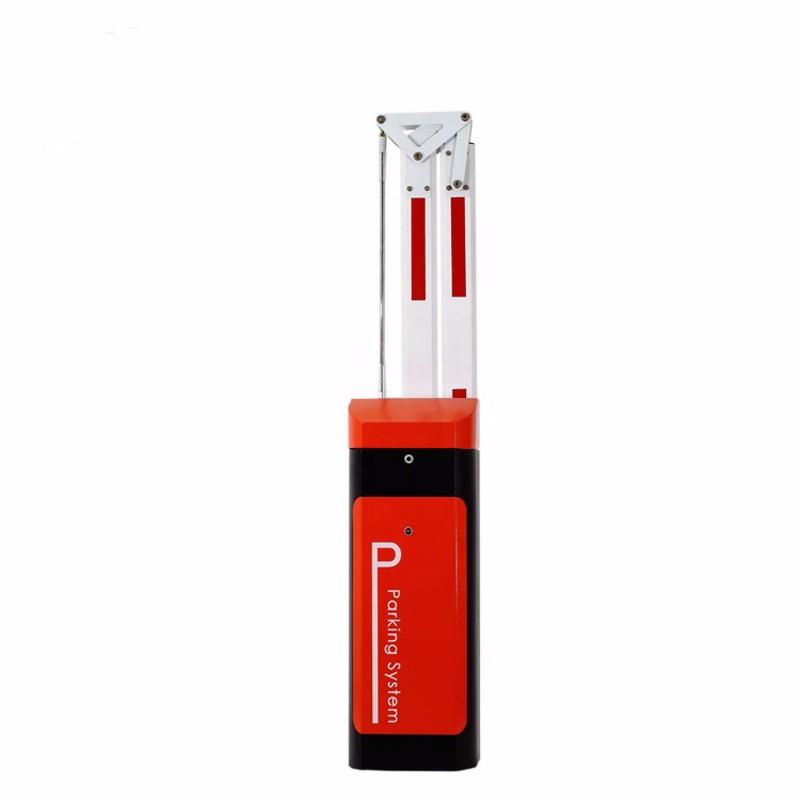

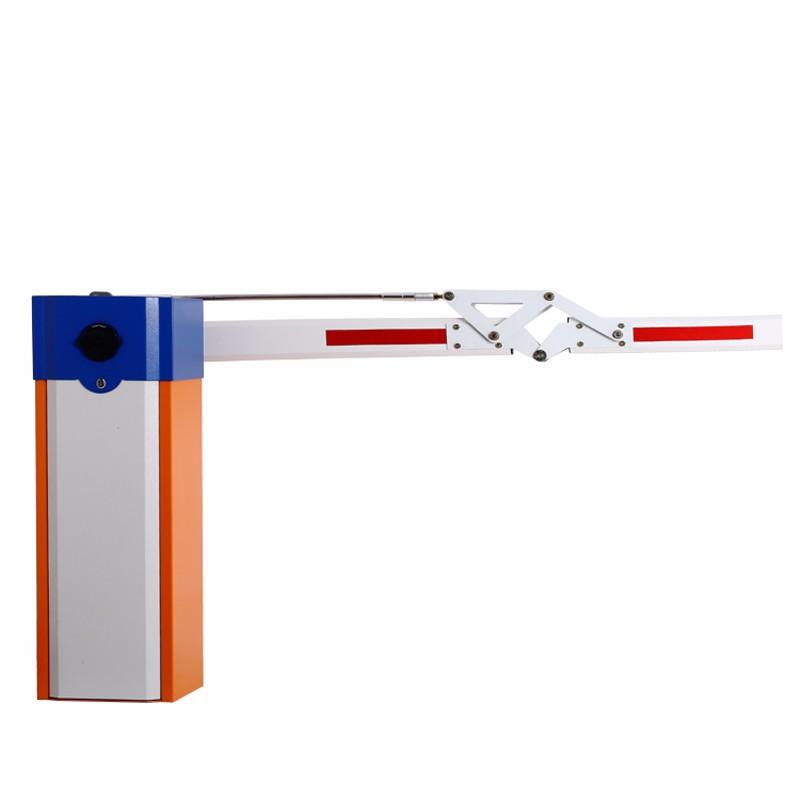

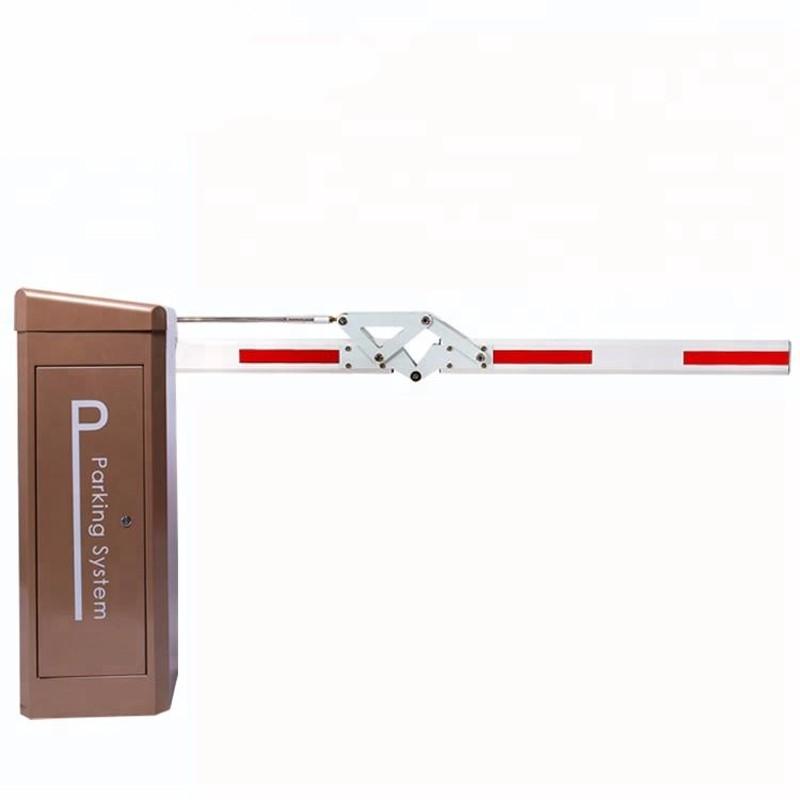

180 Degree Folding Boom Parking Lot Barrier Gate Used For Parking System

Parking Lot Management 180 Degree Folding Arm Car Park Barrier

Model

SE-115

Size

320*280*935 mm

Voltage

AC 220V/110V±10%, 50/60HZ

Rated Power

120W

Operation time

0.6s, 1s, 1.8s, 3s,4s,6s. Customized

 Working Temperature

-40℃~+75℃

Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing

Heat Treatment: more durable, more than 5 million times through operation testing

  Remote Control Distance

Usually more than 30 meters, if there is less obstacles, even 50 meters or more

Packing Size

1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery

By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Functions and Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
